喷墨打标系统

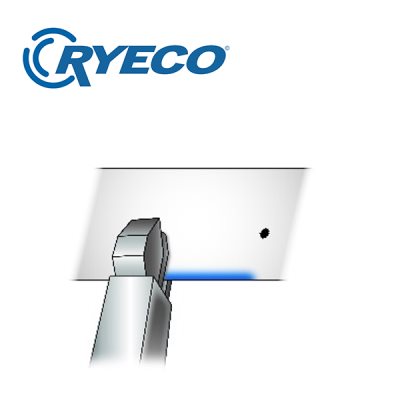

RYECO喷墨打标系统,能够针对移动的边幅提供精确、自动、安全的方法对缺陷位置进行标记。标记的点可以在下一个生产环节中及时处理,提高产品的品质。打标系统可以在任意产品表面,任意车速,任何复杂环境中稳定运行,完全可以满足您的需求。系统可以沿着边缘、表面、卷曲表面标记,甚至可以用于远距离进行同步标记。

Defect Marking
This system places marks on a web at a position relative to a defect or process upset.
  • Sprays up
  • to 6 colors of defect marks on any web material at any speed.
  • Marks can be continuous or pulsed for the length of the defect or as short as 0.5 milliseconds.
  • Marks can be visible to the human eye or detected with a Mark Detection System.
  • Marks can be invisible and only detectable with a Mark Detection System.
  • Mark defects automatically from a Web Inspection System or with process control equipment.
  • Operators can manually mark defects via the system’s control cabinet, as they occur.
  • Maintenance aided with cleaning and flushing capabilities
Defect Marking
This system places marks on a web at a position relative to a defect or process upset.
  • Sprays up
  • to 6 colors of defect marks on any web material at any speed.
  • Marks can be continuous or pulsed for the length of the defect or as short as 0.5 milliseconds.
  • Marks can be visible to the human eye or detected with a Mark Detection System.
  • Marks can be invisible and only detectable with a Mark Detection System.
  • Mark defects automatically from a Web Inspection System or with process control equipment.
  • Operators can manually mark defects via the system’s control cabinet, as they occur.
  • Maintenance aided with cleaning and flushing capabilities

Code Marking
This system encodes values onto a moving web.
  • Generates code marks in 1 color on any web material at any speed.
  • Accepts code sequences as binary digital pulses or serially as a decimal number.
  • Marks individual code bits as fast as 500 microsecond pulses every 5 milliseconds.
  • Can be configured to track the edge of a moving web to maintain consistent code positioning.
  • Encodes values up to 32 bits long.
  • RYECO-generated codes have built-in error checking and encoder verification.
  • Maintenance aided with cleaning and flushing capabilities.

Break Marking
This system places a mark on the web after a sheet break is restored.
  • Sprays break marks in one or more colors and on any web material at any speed.
  • The system accepts break signals from RYECO Sheet Break Detection Systems or other break detectors.
  • The system also accepts break signals from RYECO Ply Break Detection Systems for marking ply breaks in multi-ply tissue products.
  • The length of the break mark is an adjustable, distance or time-based parameter.
  • Color HMI for easy setup and use.
  • Maintenance aided with cleaning and flushing capabilities

Sheet Count Marking
This system counts sheets as they are stacked and places a mark at a specified number of sheets.
  • Color HMI displays a running total of the number of sheets counted (value will reset each time a mark is made). It also provides marking frequency in number of sheets, shows the number of sheets to mark, and displays mark length.
  • Marks can be invisible or made in any color.
  • The system can use an encoder signal to guarantee consistent mark lengths at any speed.
  • Maintenance aided with cleaning and flushing capabilities

Stripe Marking
This system places continuous or dashed stripes on a web to indicate web orientation or product type.
  • Sprays marks in 3-colors or can spray invisible dye to be seen under special lighting.
  • Customers can easily switch between continuous or dashed marking modes and set the length and spacing of dashed marks.
  • Markers can be mounted on the edge or in lanes across the moving web.
  • Maintenance aided with cleaning and flushing capabilities.
  • Non-contacting marking method doesn’t use rollers or pens.

Registration Marking
This system places marks on a web at precise distance intervals to be used as a registration mark for downstream processes.
  • Sprays marks in any color including invisible marks that are detected under special lighting.
  • Marks can be atomized or un-atomized.
  • Can spray on any substrate and at any speed.
  • The signal to mark can come from an encoder or another precision input.
  • Maintenance aided with cleaning and flushing capabilities.

End of Roll Marking
This system places a mark on a roll to indicate that the end of the roll is approaching downstream operators and users.
  • Sprays marks in any color including invisible marks that are detected under special lighting.
  • Marks can be dashed or continuous.
  • Customers can select desired length of the mark with the RYECO system.
  • Encoder signal is used for determining mark lengths and aids the marking process over a wide range of speeds.
  • Maintenance aided with cleaning and flushing capabilities.
